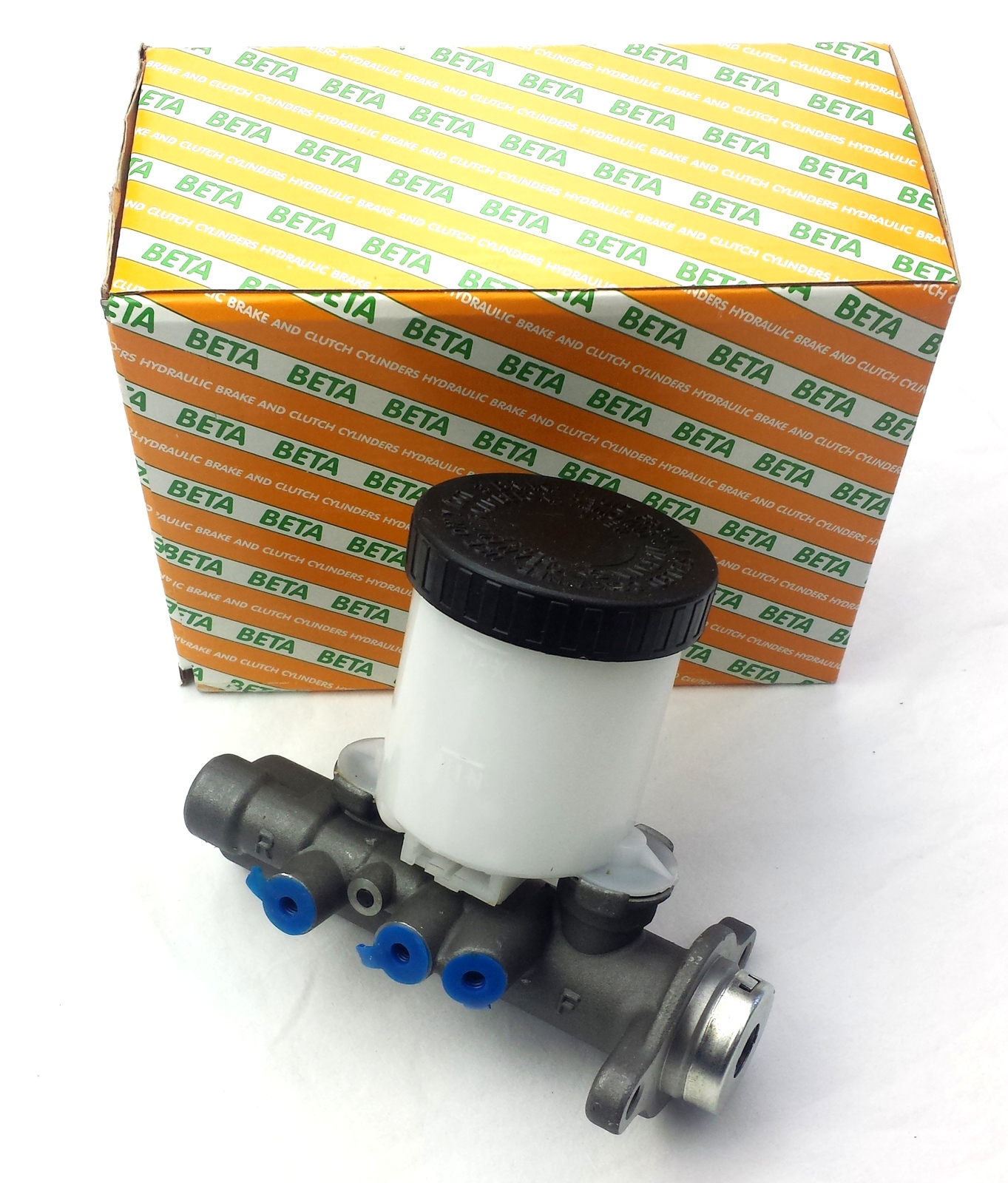

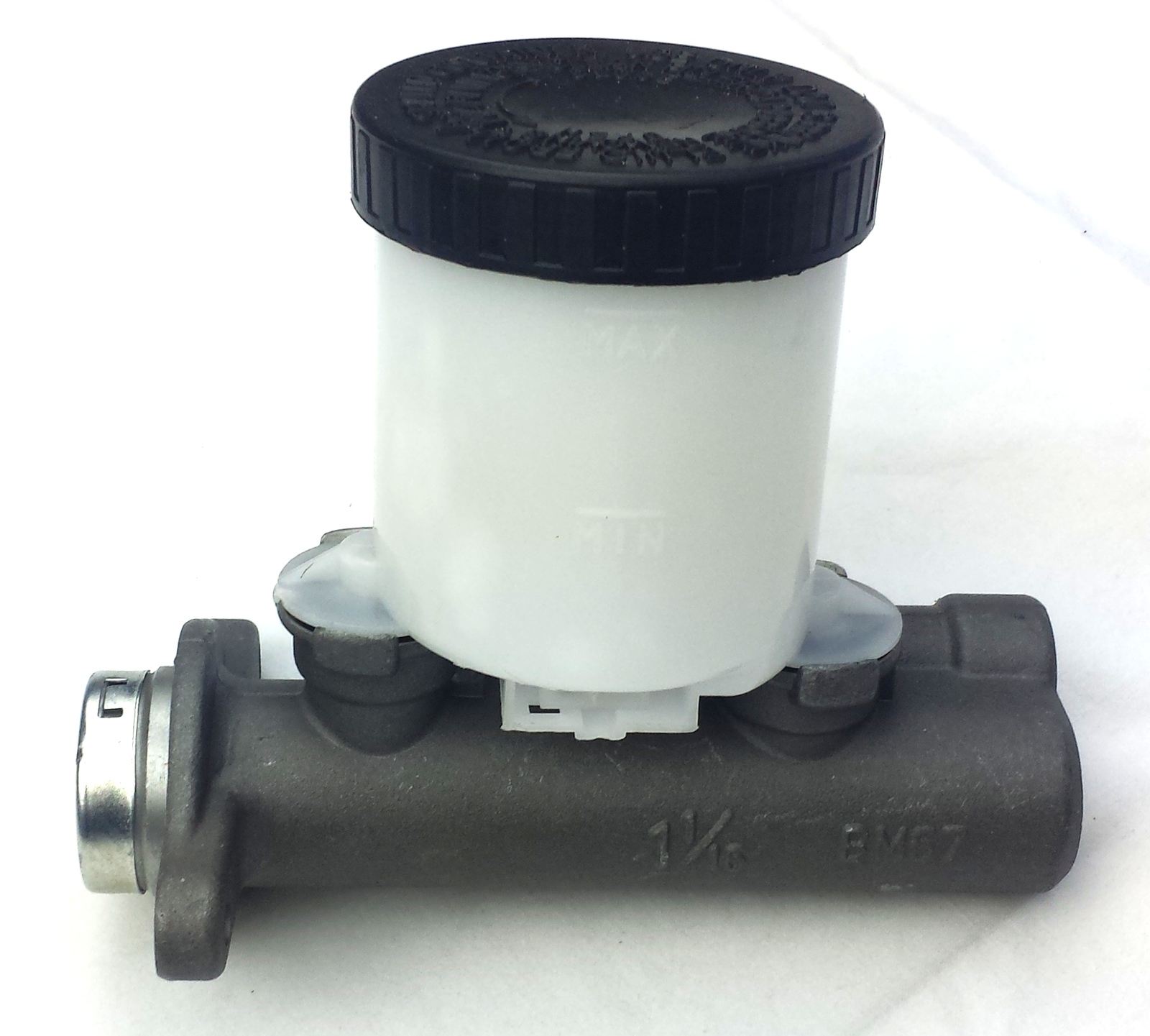

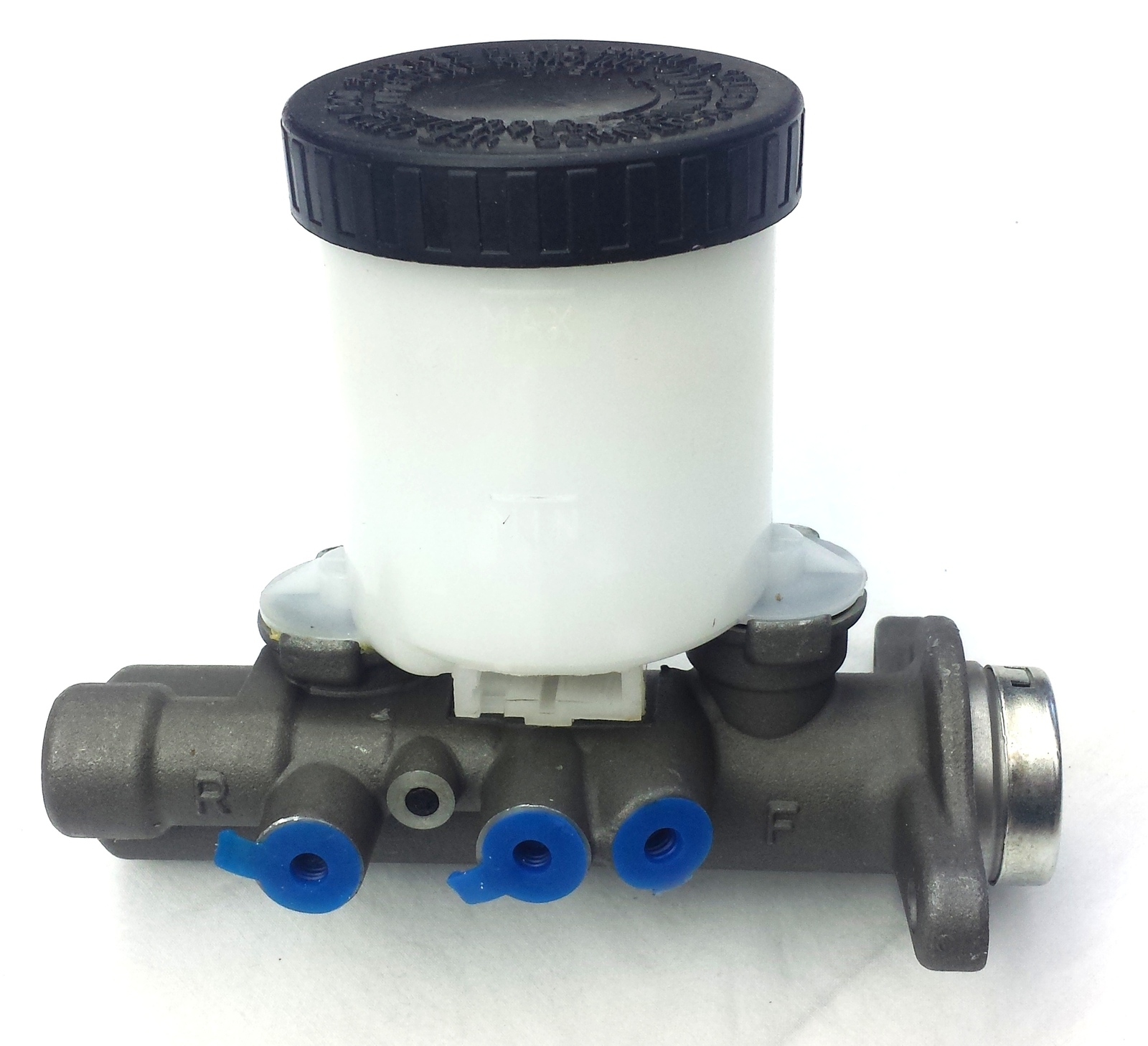

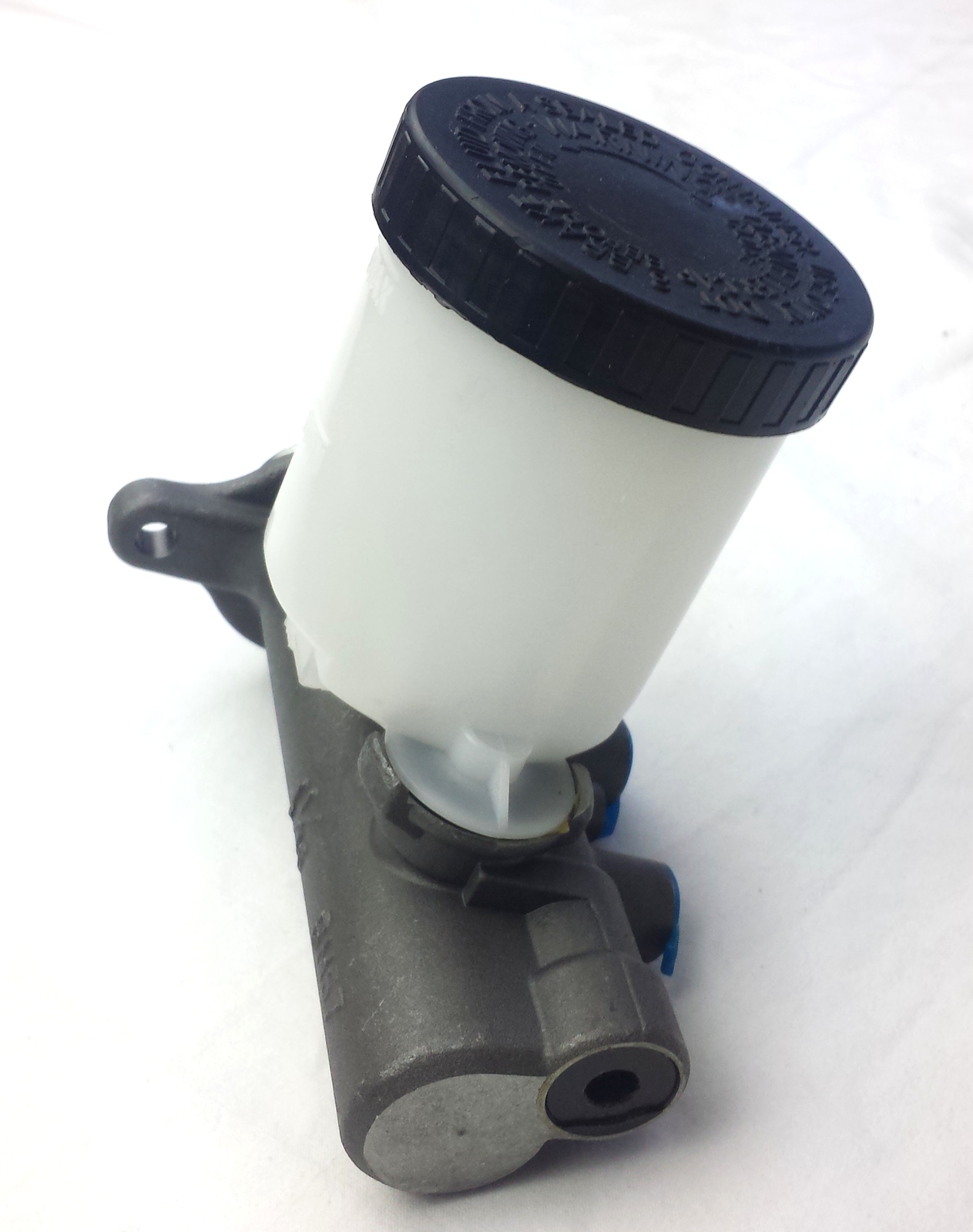

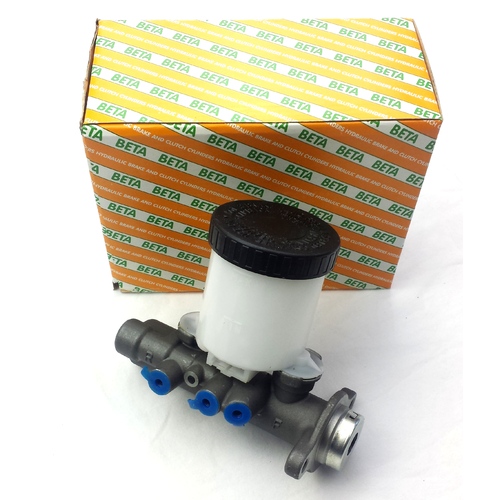

Brake Master Cylinder BM57 to fit Nissan 300ZX Z32 240 SX S13 S14

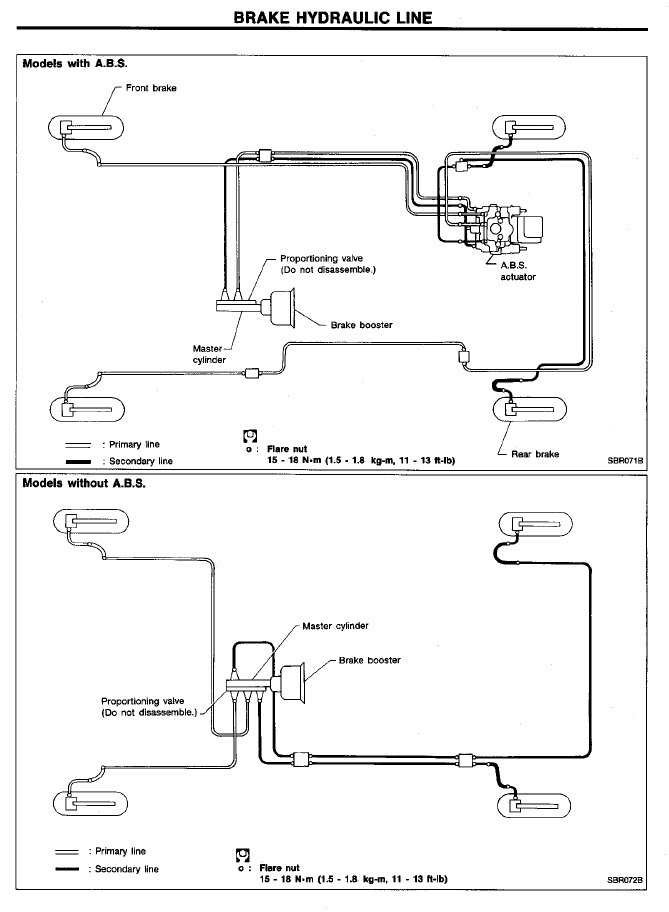

This is a brake master cylinder design to replace the Nissan OEM part (46010-30P02). It will fit RHD cars without ABS, or with ABS if you plug one of the ports. Non ABS models use all 3 ports, ABS models use the outer 2, and leaves the middle port plugged. On the ABS, the single front line output enters the ABS actuator, and becomes 2 lines when exiting the actuator. The rear line exits the manifold, enters the actuator, and exits the actuator as a single line. The internal piston is 26.99mm = 1-1/16" INCH in diameter.

BM57
